12V 5A Interchangeable AC Adapter - Compact Design & Certified Quality

Key Features

• Universal Input Voltage: 90~264Vac for global compatibility.
• Energy Efficiency: Meets CEC & ErP Level VI standards.
• Robust Protections:
  • Continuous Short Circuit Protection (Auto Recovery).
  • Over Voltage Protection.

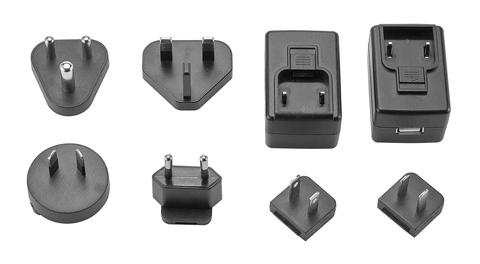

• Interchangeable Plugs: Supports various countries and regions with replaceable input plugs.
• Durable Warranty: Backed by a 2-year warranty.

Input Specifications

• Voltage Range: 100Vac~240Vac.
• Frequency: 50~60Hz.
• Input Current: Max 1.5A.
• Inrush Current: Max 60A (cold start @ 25℃, 240Vac).
• Leakage Current: ≤ 0.25mA.

Output Specifications

• Hold-up Time: Typical 10ms @ 115Vac.
• Protections:
  • Continuous Short Circuit Protection (Auto Recovery).
  • Over Voltage Protection.
• Temperature Coefficient: ±0.05%/℃.

General Specifications

• Hi-pot Testing: Input to output - 3,000Vac.
• Operating Temperature: 0℃ ~ 40℃.
• Storage Temperature: -20℃ ~ 80℃.
• Humidity: Max 85% RH (non-condensing).
• Cooling: Natural convection.
• Switching Frequency: Typical 50KHz.
• Reliability: MTBF of 50,000 hours at 25℃ / 115Vac (MIL-HDBK-217F standard).
• Altitude: Supports up to 5000m operation.

Safety and EMC Compliance

• EMC Standards:
  • Emission and Immunity: FCC Part 15, CISPR22, GB9254, GB17625.1.
  • International Certifications: EN/AS/NZA/K/J55032/35/14/24 Class B, EN61000-3-2/-3-3.
• Safety Standards:
  • Certified by UL, CUL, 60950, GB4943, J60950, K60950, CE, CB, TUV, IEC/EN/AS/NZA60950/60065/61558.

Additional Notes

1. Voltage accuracy tested at 60% full load.
2. Ripple and noise measured with a 0.1µF ceramic capacitor and a 10µF electrolytic capacitor @ 20MHz BW.
3. Line regulation: Tested from 100Vac to 240Vac at full load.
4. Load regulation: Measured across 60%±40% full load range.
